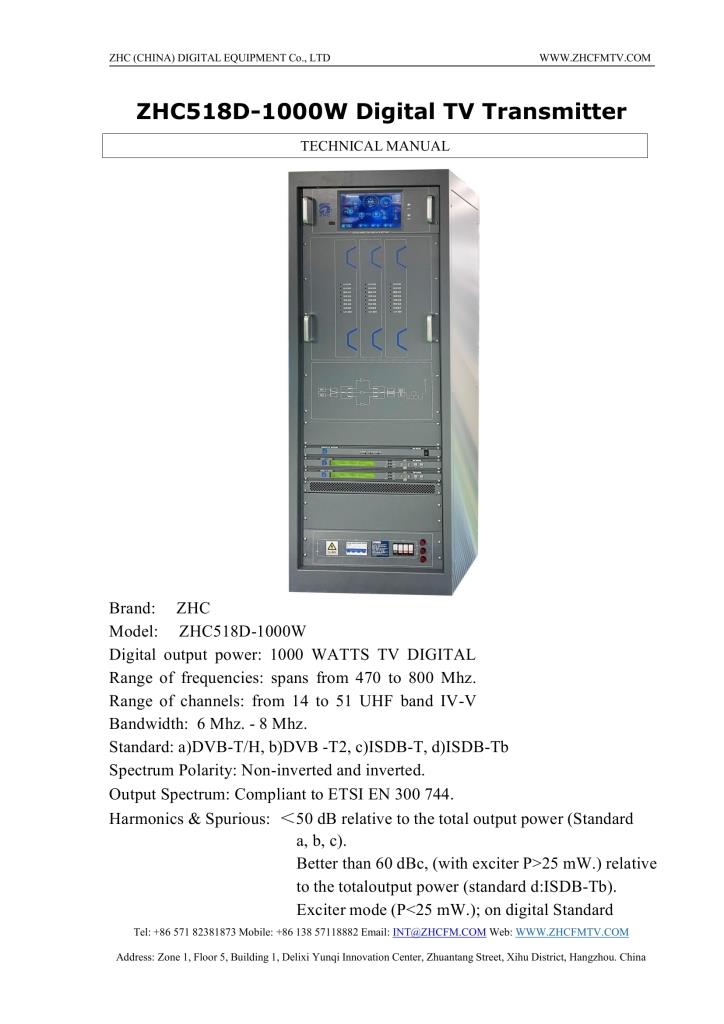

1KW Digital TV Transmitter

Model:ZHC518D-1000W

Specifications:Professional for TV Station

Product introduction:This product has excellent performance indicators, the designed power redundancy is large, and uses high-power field effect transistors (LDMOS) suitable for digital TV signal amplification as power amplifier components.

ZHC518D-1KW DVB-T Transmitter


1KW DVB-T Transmitter VHF/UHF

Professional performance

Module design

MCU controlled

RS485/232 interface

8-inch color LCD with touch panel

High reliability

Low price.


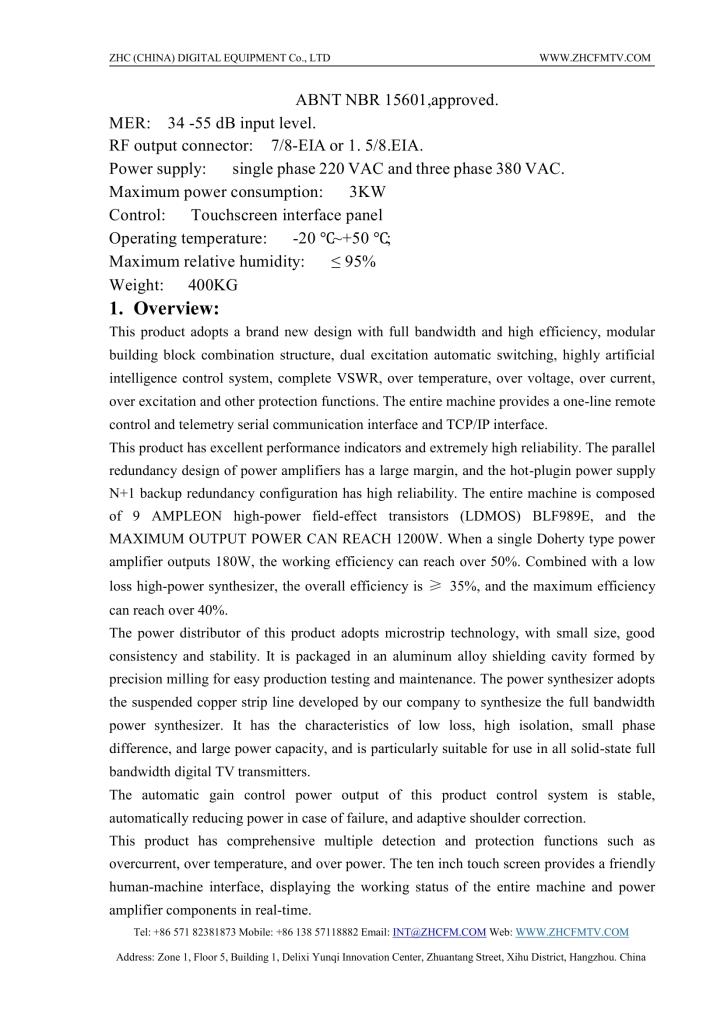

This product has excellent performance indicators, the designed power redundancy is large, and uses high-power field effect transistors (LDMOS) suitable for digital TV signal amplification as power amplifier components. The power supply and power amplifier components are all hot-swappable devices. The one-time combined power combiner developed by our company has the characteristics of low loss and low standing wave, and is especially suitable for use in all solid-state digital TV transmitters. This product has unique and complete multiple detection and protection functions. The power amplifier component has real-time display of amplifier working parameters and protection functions such as overcurrent, overtemperature, and overpower.


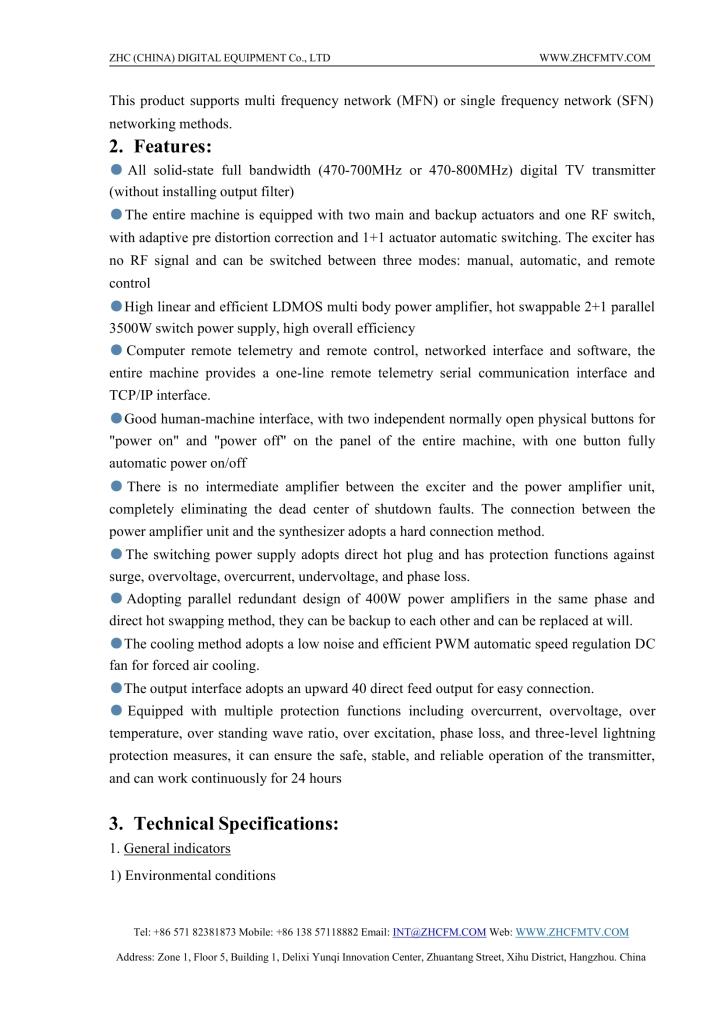

Features:
All solid-state digital TV transmitter, bandwidth is 30MHZ.

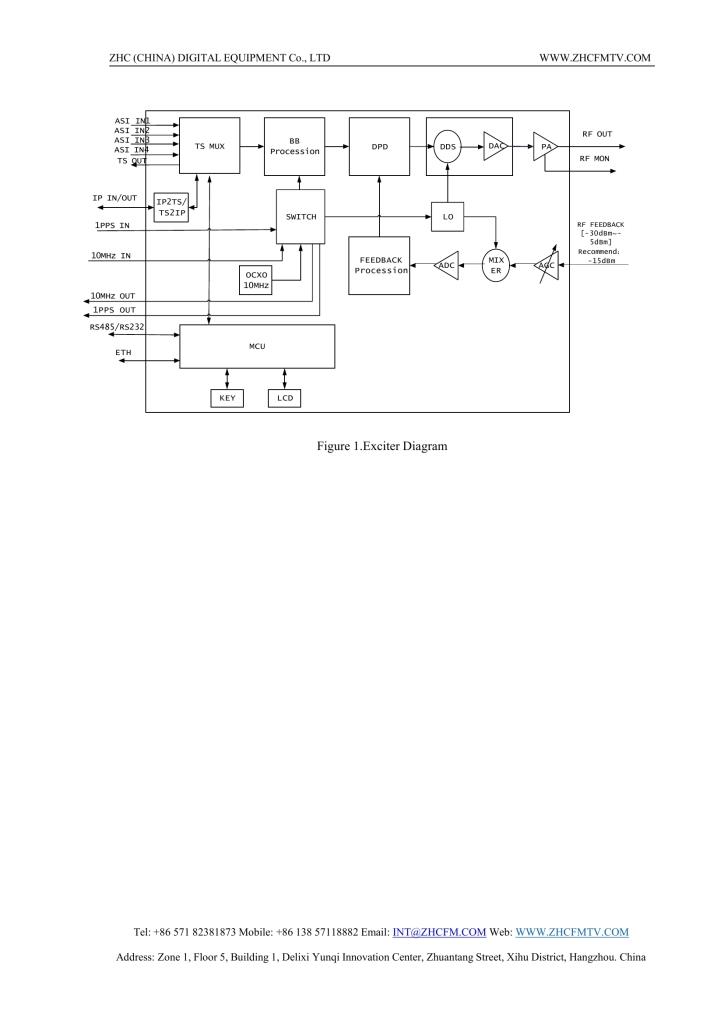

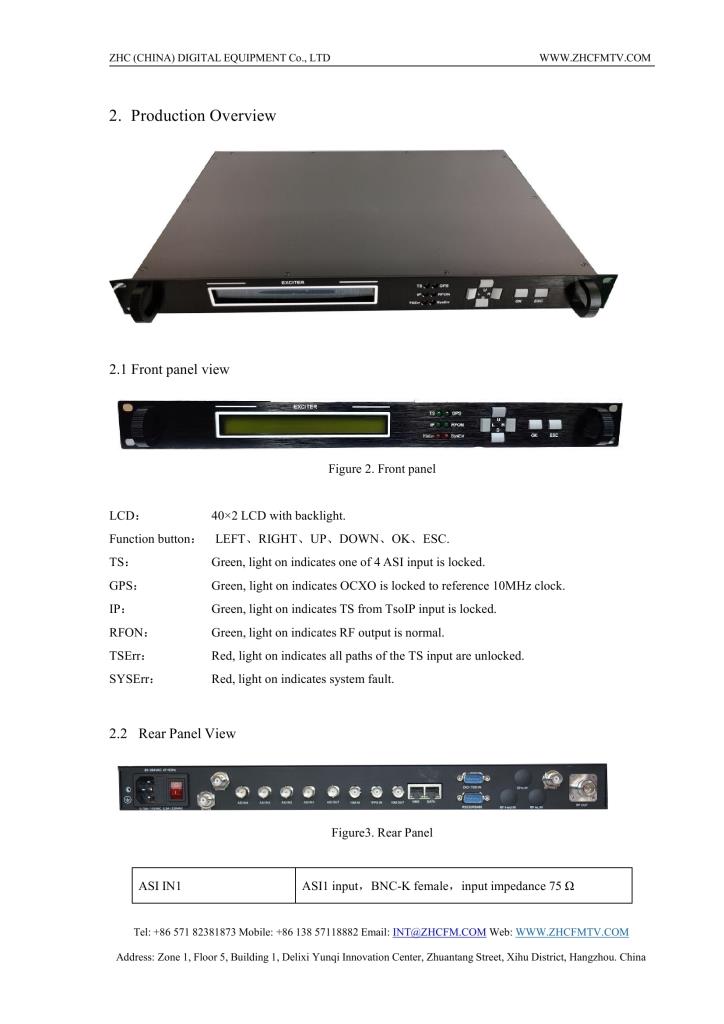

Pre-distortion correction, dual-exciters switch automatically.

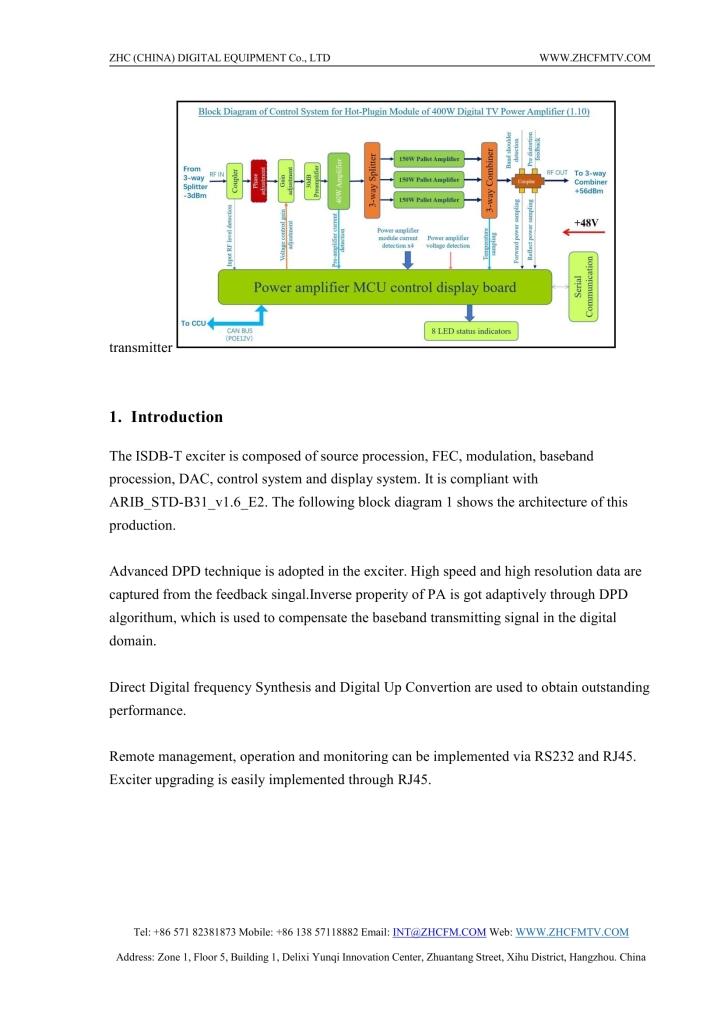

High Linearity LDMOS Power Amplifier, high-gain power amplifier module, parallel switching power supply, it is a high-efficiency transmitter.
Telemetry and remote control by computer, web-based interface and software.
Good man-machine interface, full automatic switch the machine with one key.
Multi protection (over voltage, over current, overheating, large standing-wave ratio ...)high reliability, 24 hours continuous works.

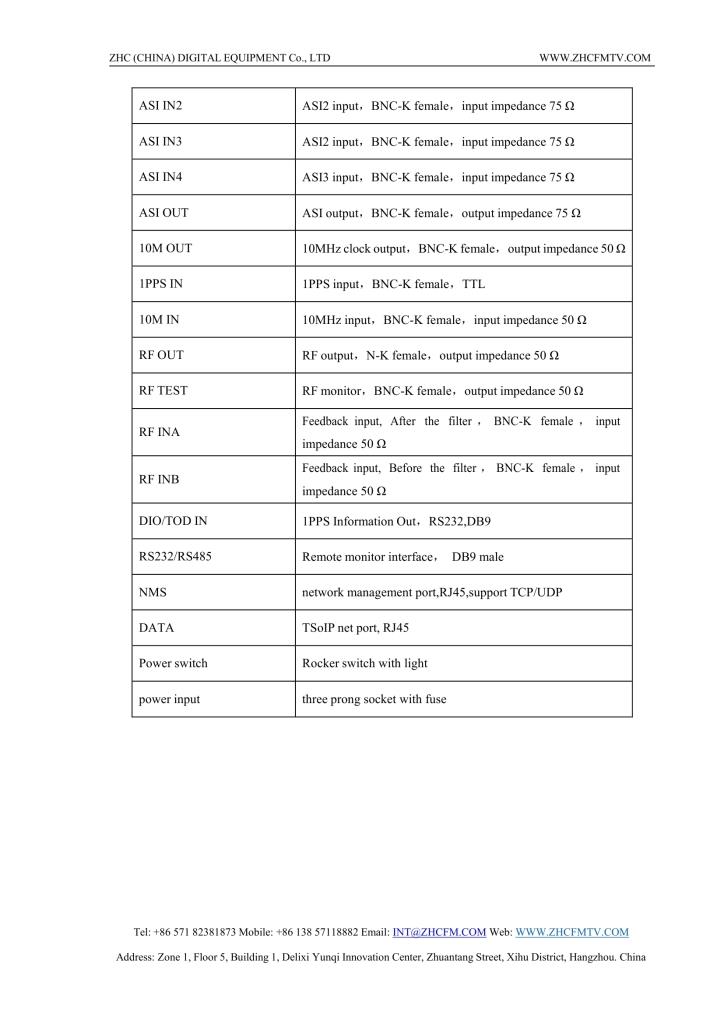

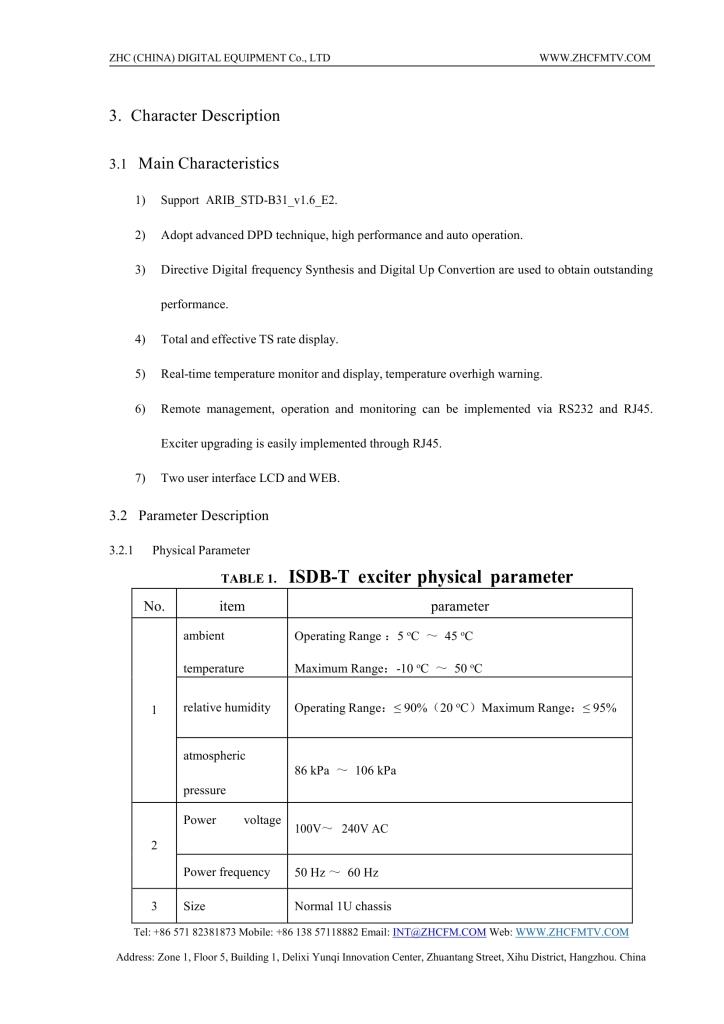

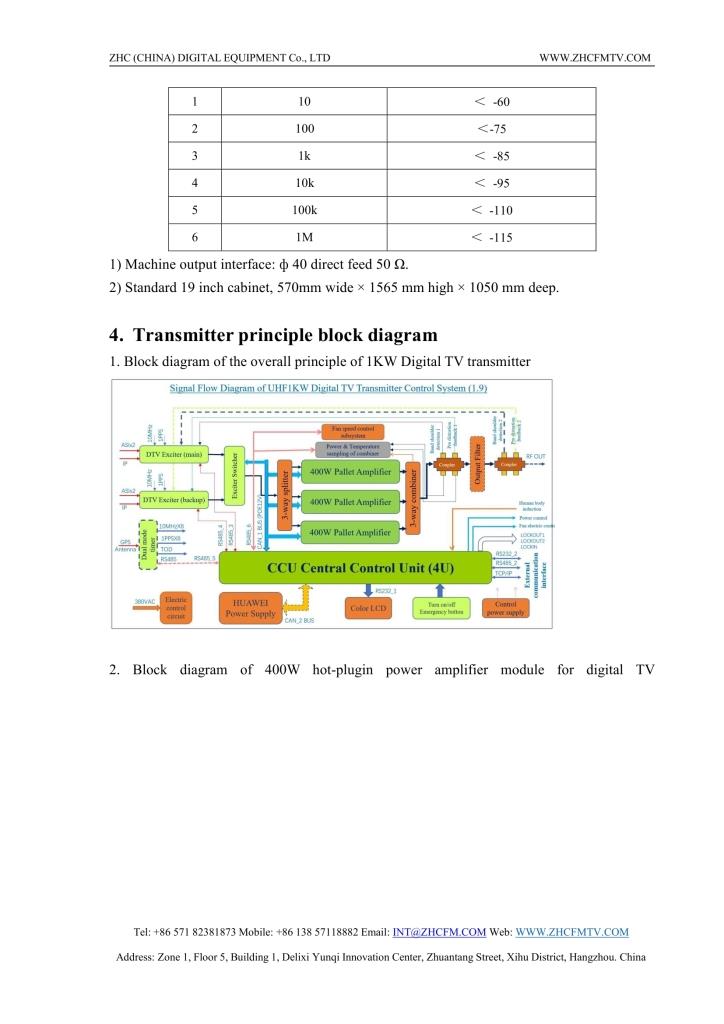

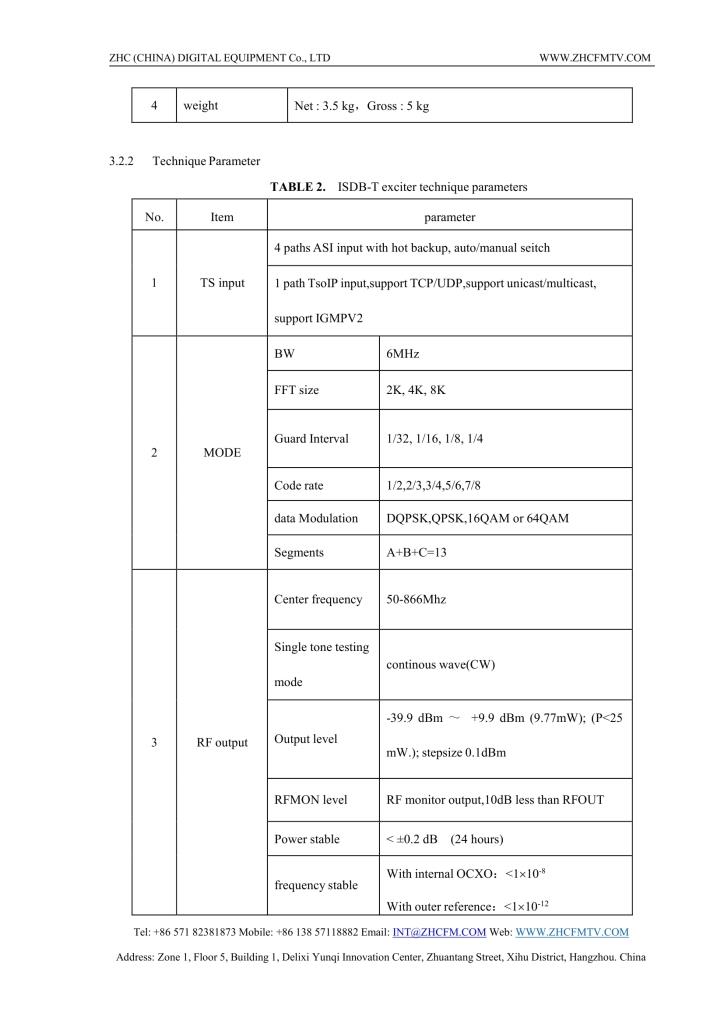

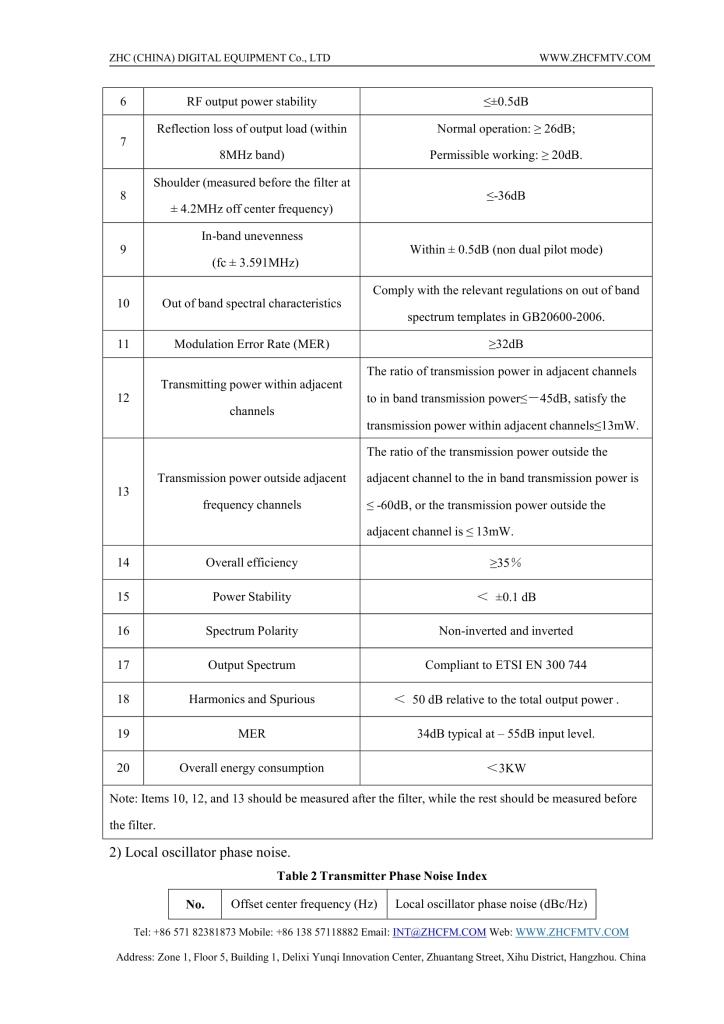

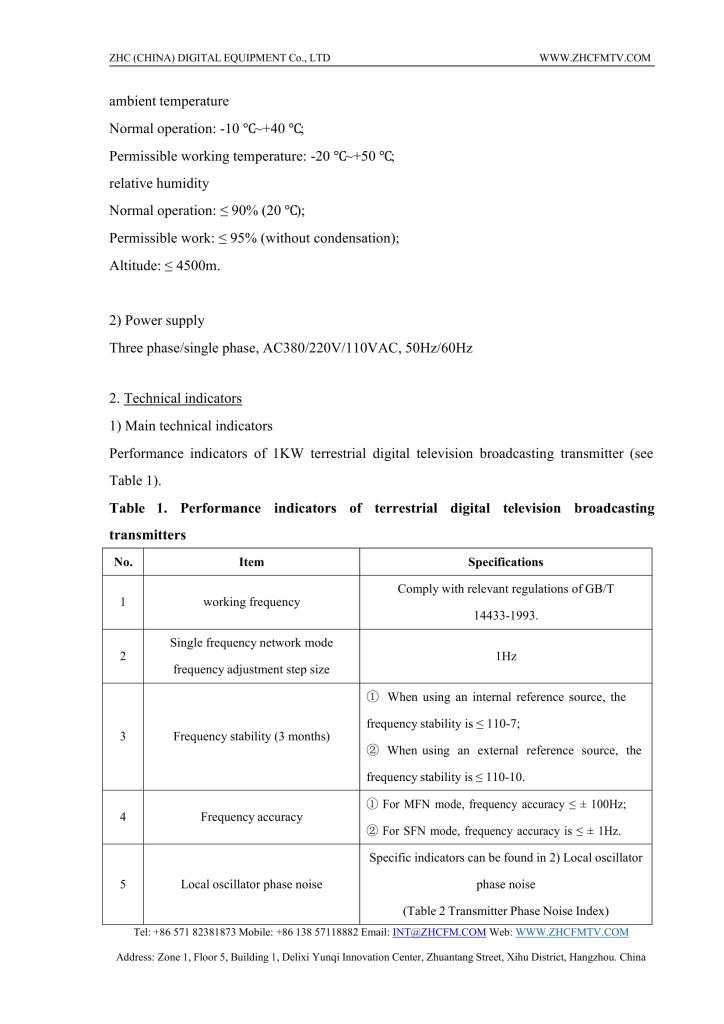

Technical Specifications:
1. Working frequency
         VHF/UHF
2. Channel bandwidth
         30MHz
3. Output power
                  1KW
4. Output impedance
           50Ω
5. Output interface
             Φ40 (1-5/8”)
6. Output load return loss:     Normal operation: -32dB
                                          Allowed operation: -20dB
7. Power input level
            0dBm
8. Amplifier input impedance
50Ω
9. Amplifier input interface
 N
10.Useless transmission:
-60dB
11.Band fluctuations:
±0.5dB
12.Band shoulder:                  better than 36dB

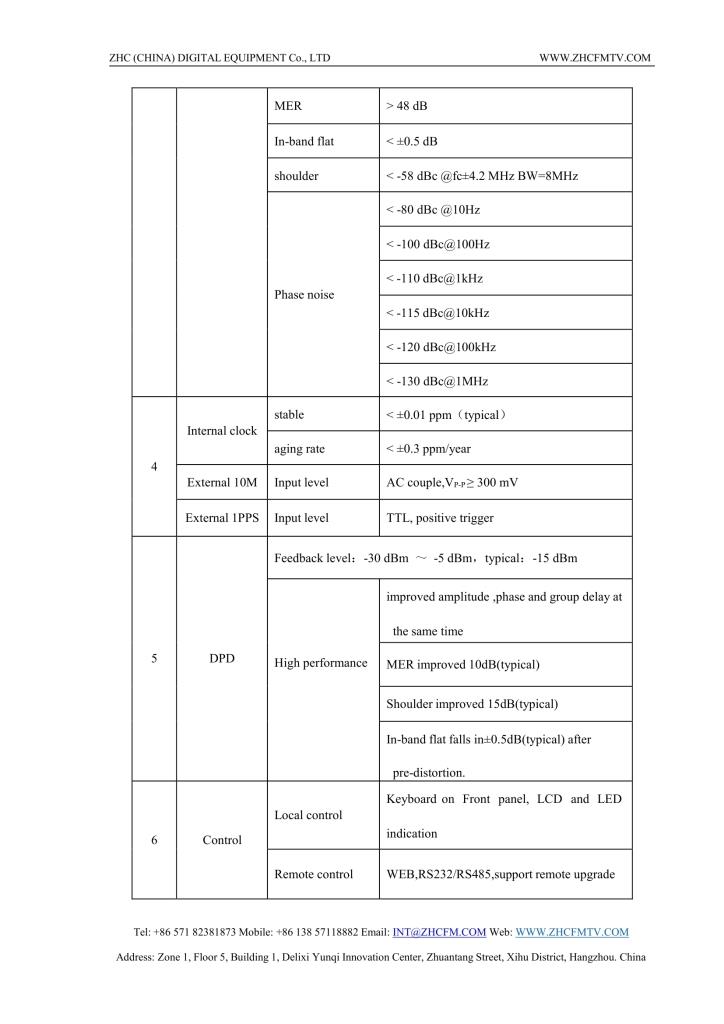

13.MER
                              better than 30dB
14.Size
                              1840mm×1280mm×680mm
15.Weight
                          350KG
