10KW FM Transmitter


Specifications:10KW FM Stereo Transmitter (Hot-plugin)

Product introduction:The 10KW FM Stereo Transmitter (Hot-plugin) is a high-performance broadcast-grade stereo FM broadcast transmitter for wireless coverage of professional broadcast stations.

10KW FM Stereo Transmitter

The 10KW FM Stereo Transmitter (Hot-plugin) is a high-performance broadcast-grade stereo FM broadcast transmitter for wireless coverage of professional broadcast stations. Considering the high reliability of the transmitter, in the design concept, the transmitter adopts redundant design in key parts in order to achieve long-term stable operation of the transmitter. Because of the hot-plugin structure, the transmitter's components can be repaired and restored without stop working.



Redundant Large Power: 8pcs 1.5KW hot-plug RF Amplifier modules combined high efficiently; Maximum Output Power is 11KW. It uses the new high-efficiency LDMOS Transistors, the full RF output power can reach 70%.


Redundant Power Supply: 4pcs 5000VA switched power supply modules are working in parallel. It can provide large redundant power capacity.


High-performance Low Pass Filter which can minimize unwanted emission.


Output Power Stable: Total output power is extremely stable by AGC (Automatic Gain Control). Ensure the output power would not change with the boot time and ambient temperature, power stability is less than 10W.


Dual-Exciter: Two exciters (DSP+DDS) with automatically changeover switcher, increase entire transmitter stability.


● Analog and Digital (AES/EBU) audio signal input directly; Hearing similar to CD.


Friendly man-machine interface: 8-inch true-color touch LCD display, real-time display of various parameters in the machine, without any training, you can operate under the screen prompts.


Intelligent protection functions by centre control module, like Over Forward Power, Over SWR, Over Temperature, Over Voltage, Over Current. It can adjust output power intelligent, keep the maximum safe output power and keep fault not expanding.


Best dustproof performance: All inlets are made of high-quality filters which can filter out dust in the air to keep stability of transmitter.


Best lightning protection: high quality lightning protection SPD fromGermanyfor the whole power supply.


Real Hot-Plug structure: the Amplifier modules and Power Supply modules can be repairing at non-stop condition in any case.


Timing automatically adjusts the output power: After setting, the transmitter can automatically adjust the output power at different times of the day, convenient for economical radio broadcasting.


● Advanced Remote Telemetry Interface: RS232/RS485 or TCP/IP Internet Communication interface is ready for remote control system which can read all detail parameters from transmitter.

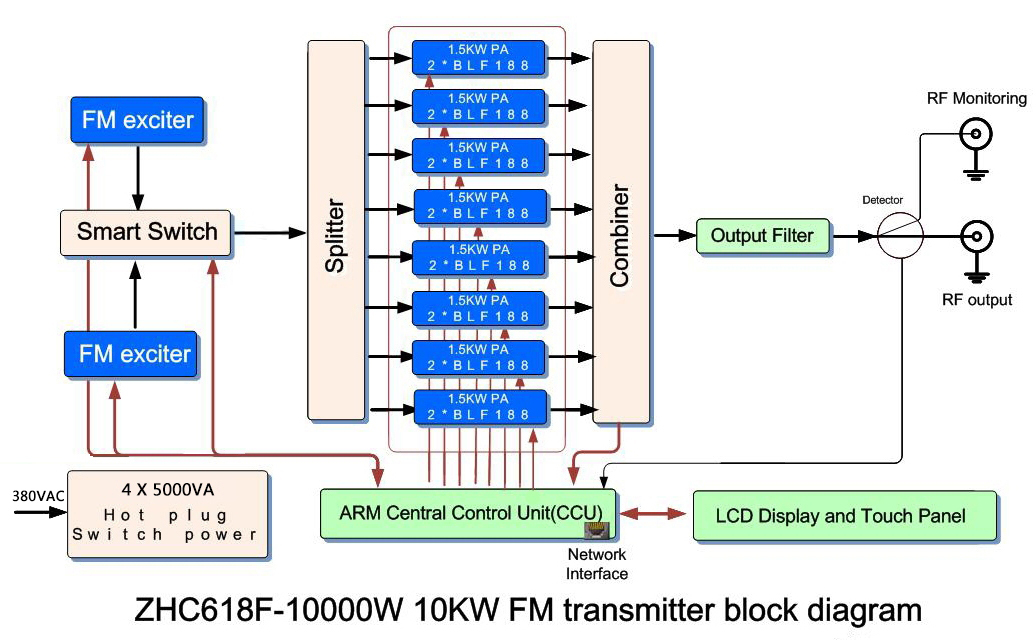

10KW FM Diagram.jpg

Technical Specifications:

1. RF frequency range                    87MHz108MHz

(other frequencies can be customized), stepping 10kHz

2. Output power                          0~10000W continuously adjustable

3. Allowable deviation of output power   ± 10%

4. Output power stability                 ± 3%

5. Output impedance                     50Ω

6. RF Output Interface:                   3-1/8' Flange

7. Residual wave radiation                -80dB

8. Parasitic amplitude modulation         -50dB

9. Carrier Frequency precision:           ±200Hz

10. Analog audio input                    -12dBm ~ +8dBm

11. Input audio Level Gain                -15dB~+15dB Step 0.1dB

12. Analog audio input impedance         600Ω balance

13. AES input impedance                  110Ω balance

14. AES input level                        0.2~10Vpp

15. AES sampling rate                     30kHz ~ 96kHz

16. RDS input                       Unbalanced (optional) BNC type connector

17. Pre-emphasis:                         0μS50μS75μS

18. Audio response:                       ±0.01dB (30Hz15000Hz)

19. Left and right channel level difference <0.01dB (100% modulation)

20. Stereo separation                     ≥70dB (30Hz 15000Hz)

21. Stereo signal-to-noise ratio           ≥90dB (1KHz, 100% modulation)

22. Distortion                             <0.01% (30Hz 15000Hz)

23. Cooling method                       Forced convection

24. Temperature range                    -5 + 45

25. Chassis dimensions                   19 inches

wide (850mm) × height (1970mm) × depth (1200mm)

26. Transmitter weight                    550kg
