3KW Analog TV Transmitter


Specifications:3KW Analog TV Transmitter Modular Design

Product introduction:This Transmitter is a high-standard, broadcast-grade cabinet-type all-solid-state analog TV transmitter with a modular structure, which is very convenient for maintenance.

ZHC518A-3000W/M2 Analog TV Transmitter


This Transmitter is a high-standard, broadcast-grade cabinet-type all-solid-state analog TV transmitter with a modular structure, which is very convenient for maintenance. It uses a new software radio technology to achieve the TV modulation function; the use of international high-quality LDMOS high-power field effect tube to achieve RF amplification, the output power can be 3000W.

The TV transmitter is mainly composed of a TV modulation unit and an RF power amplification unit. Among them, the TV modulation unit uses the new FPGA + DDS to realize the software TV modulation function, while obtaining superior technical indicators while ensuring reliability and performance consistency; the RF power amplification unit uses international high-quality LDMOS high-power field effect transistors, Analog/Digital Compatible, stable and reliable.

The whole Transmitter adopts 19 "standard stainless steel case, suitable for all levels of TV stations.



Analog TV exciter with new digital technology, superior performance, high reliability and good consistency.


The main and backup exciter configurations can be used to reduce the stop rate (spare exciter and automatic switch are optional).


With no video, over standing wave ratio, over power, over voltage, over current, over temperature and other protection functions to reduce equipment damage.


Power control adopts closed-loop automatic gain control to ensure stable output power without drift.


The power amplifier unit is composed of two independent 2000W power amplifiers. Each power amplifier uses three original imported high-quality long-life and large-volume axial fans in parallel, with large redundant air volume and good heat dissipation effect, so that the transmitter is in a low temperature state, which can extend the life of the transmitter.


The 2000W power amplifier is installed in a 3U high 19-inch standard chassis, which is composed of four identical 500W power amplifier modules for low loss, high isolation and in-phase synthesis. The power redundancy design has a large margin and high reliability.


The power amplifier module uses the latest high efficiency and high standing wave ratio LDMOS tube, adopts microstrip impedance conversion technology, simple and efficient, good consistency, easy maintenance and replacement.


Using high-quality switching power supply, with over-voltage, over-current, under-voltage, over-temperature, short circuit, lightning protection and other protection measures, high efficiency, good voltage regulation range, strong ability to adapt to external power changes; and flexible N + 1 heat Plug-in configuration scheme, parallel current sharing centralized power supply. It can also be redundantly configured according to customer requirements.


With intelligent network management and monitoring, with RS232 and TCP / IP communication interface.

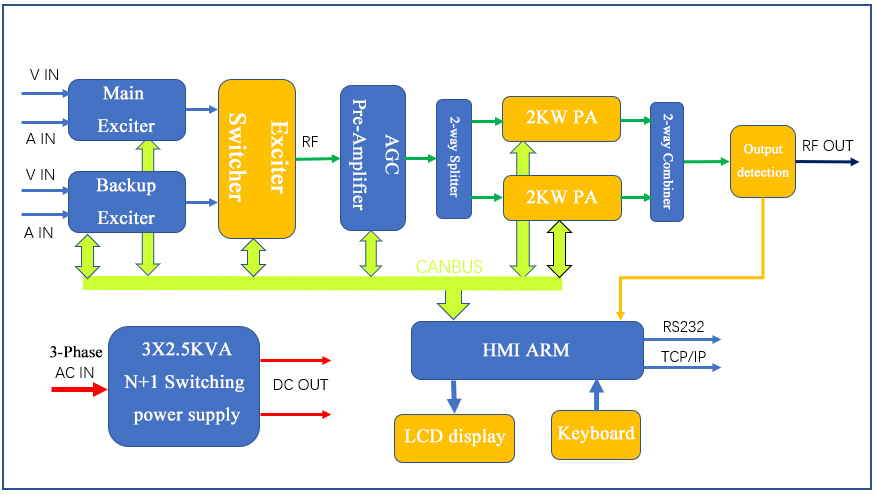

ZHC518A-3000W/M2 Analog TV Transmitter Diagram



Technical Specifications:


Overall performances:

1. Operating frequency band:   VHF / UHF

2. Image carrier frequency deviation: ± 300Hz

3. Output power:              3000W

4. Output impedance:          50Ω

5. Inter-modulation distortion: -50dB

6. Useless emission:          -50dB inside adjacent channels;

-65dB outside adjacent channels

7. RF output interface:       7/8” Flange or 1-5/8” Flange

8. Power supply:             three phase 380VAC

9. Cooling method:           forced air cooling

10. Working environment temperature: -10~+45

11. Dimensions: 570mm(width) x 1360mm(height) x 850mm(depth)

12. Weight:                  180Kg


Image performance:

1. Video input level:          1VP-P positive polarity

2. Video input impedance:             75Ω

3. Video in-band reflection loss:        35dB

4. Video input interface:               BNC-K

5. Periodic clutter signal-to-noise ratio: 55dB

6. Continuous random wave SNR:      60dB (weighted),

55dB (un weighted)

7. Group delay:                       ±30ns

8. 2T square wave distortion:          1%

9. Distortion of brightness waveform:  1.2%

10. Non-linear brightness distortion:   3%

11. Differential gain DG:              ≤±3%

12. Differential phase DP:             ≤±3°

13. Color / bright gain difference:     1%

14. Color / bright delay difference:    ±5ns

15. Modulation degree:               87.5%


Sound performance:

1. Sound / image carrier power ratio: -10dB

2. Sound carrier frequency deviation: ±200Hz

3. Audio input level:                 0dBm ± 6dBm

4. Audio input impedance: 600Ω balanced or 10KΩ unbalanced

5. Audio input interface:             XLR-K / BNC-K

6. Sound modulation capability:       >±100KHz

7. FM signal-to-noise ratio:           70dB

8. Amplitude-frequency characteristic: ± 1dB

9. AM noise (no modulation):         -55dB

10. Internal carrier noise (100% modulation): -50dB

11. Harmonic distortion:              0.3%

12. Maximum frequency deviation:    ±50KHz

13. Pre-emphasis time constant:      50us
